Services we offer:

Please enquire about any other design and draughting you require that may not be listed.

PART DESIGN

Accurate and precise design of parts and components for machinery, automotive, plant, industry, etc.

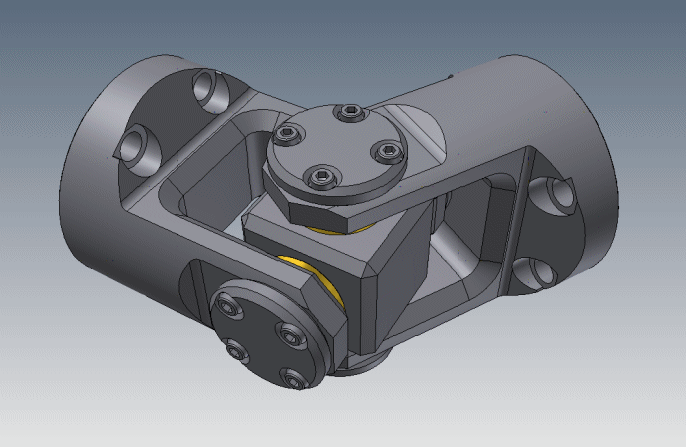

MECHANICAL DESIGN

Design and simulation of mechanical components, sub-assembly's and full assembly's. Precision working drawings of mechanical equipment. Prototyping service available.

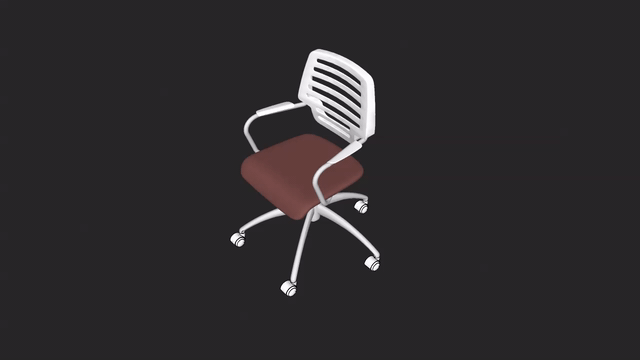

PRODUCT DESIGN

Do you wish to bring a product to the market but need it designed? We offer this service with full confidentiality. See it before it's made, alter it to suit trends.

FREE ON-SITE CONSULTATION

INTERIOR DESIGN

Walkthrough 3D interior design with photo texture quality offered. The latest CAD software combined with photometric design principles allows us to accurately draw up your interior and you can change as you please. See it before it's even started.

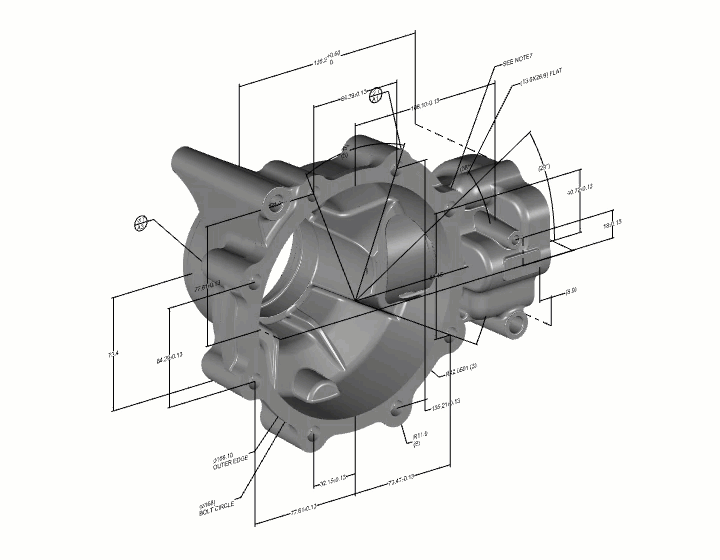

REVERSE ENGINEERING

Need to manufacture an existing structure or item and have no drawings? We can reverse engineer it and supply drawings for you to fabricate an exact (or even improved) replacement. Precision and accuracy is our core policy.

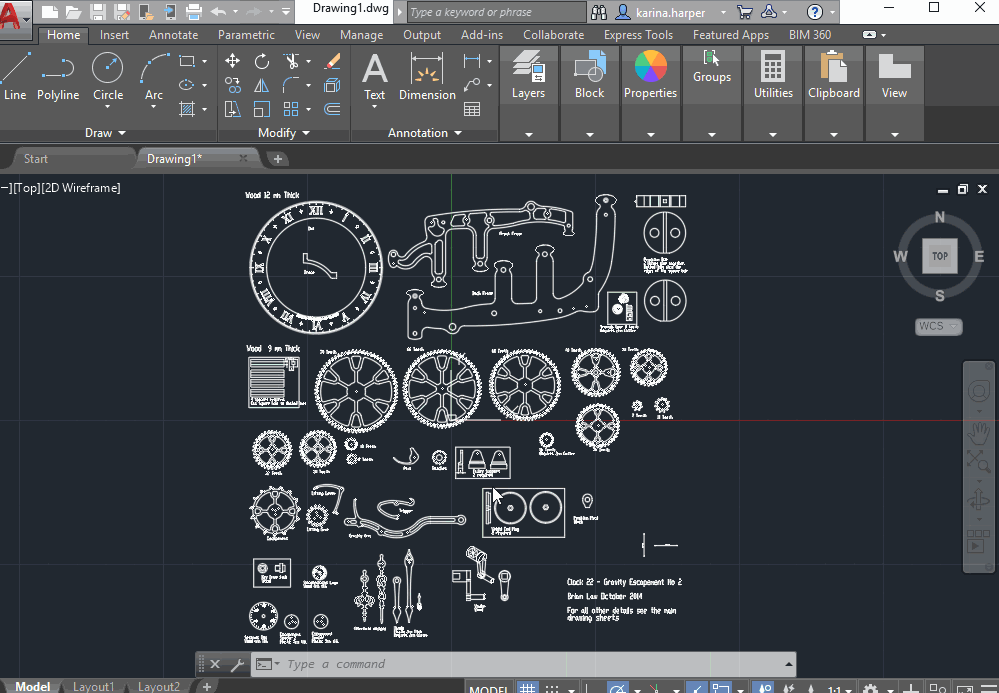

CNC DXF/DWG DRAWINGS

DWG and DXF drawings for laser cutting, plasma cutting, rolling, bending, punching, etc. We draw the component you need and supply in the format your CNC supplier needs for CNC nesting and programing.

FREE DESIGN COST ESTIMATES

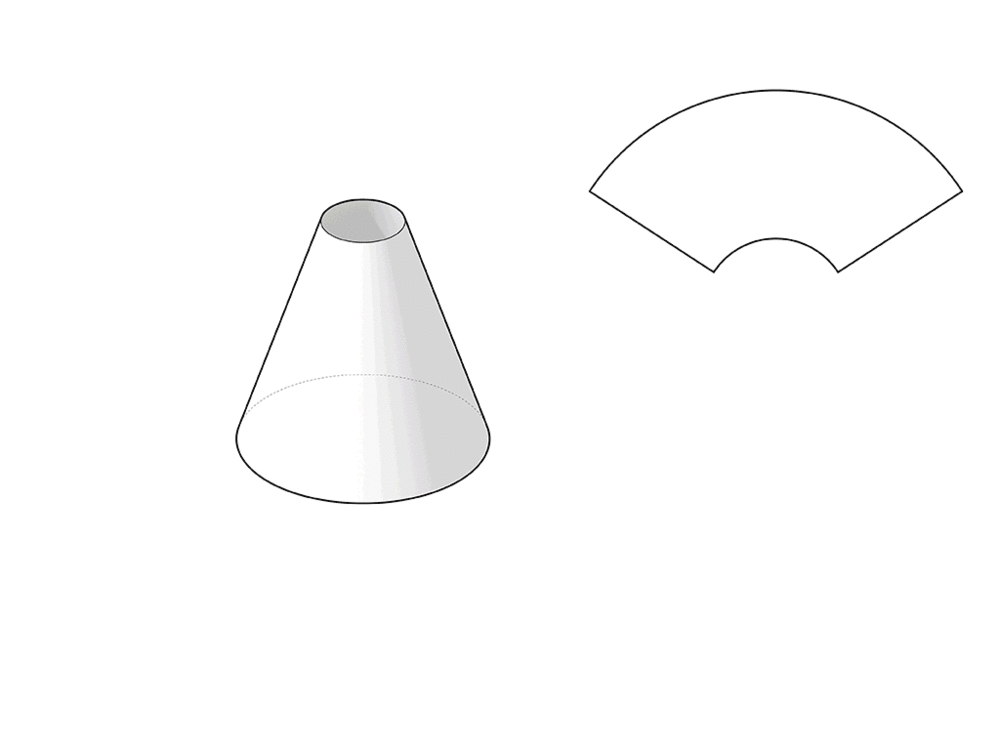

GEOMETRIC DEVELOPMENT

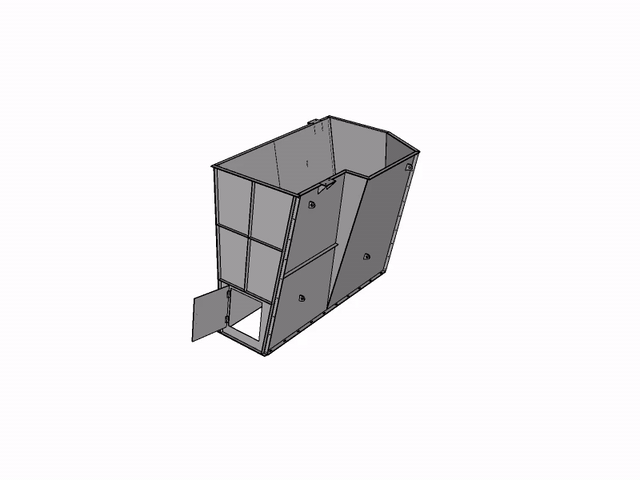

Cone, cylinder, bend and roll development. Need a cone or similar rolled? We develop flat patterns of any three dimentional shapes for sheet metal and plate work. This can also be done for material that needs to be segmented and joined.

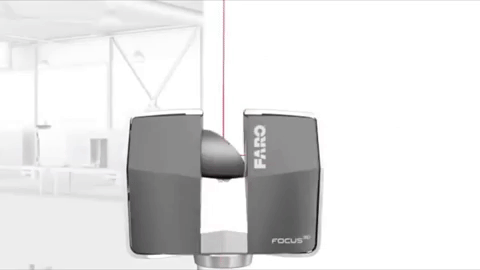

LASER SCANNING

We offer a laser scanning service using the highly accurate Faro Scanner. Any structure can be scanned accurately and then pointclouds are used for precise realtime measuring. This is followed by accurate drawings for architecture, structural engineering, mechanical engineering, etc.

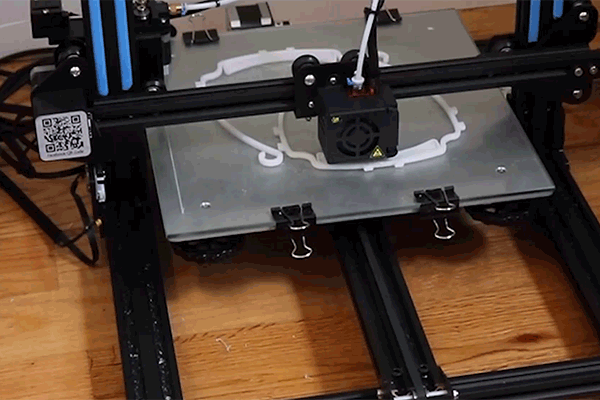

PROTOTYPING

Prototyping service available for any item, part, component, device, product. If we designed it, we can make it. 3D printed or fully manufactured. Engineering with producability in mind is of highest importance to us.
